Dp002 - series: Genova / model: Doria/2 [SOLD]

| ۩ | 0 comments

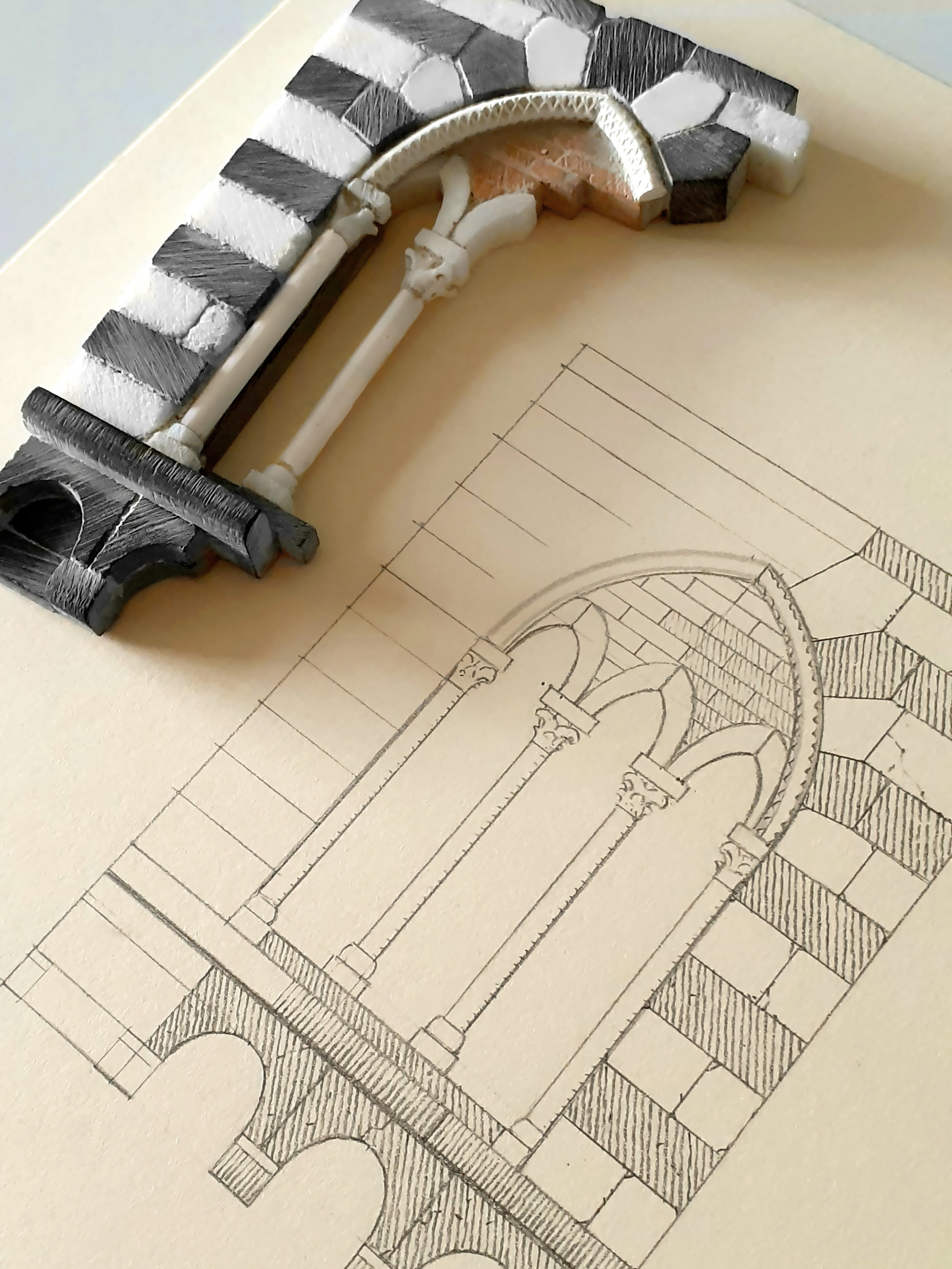

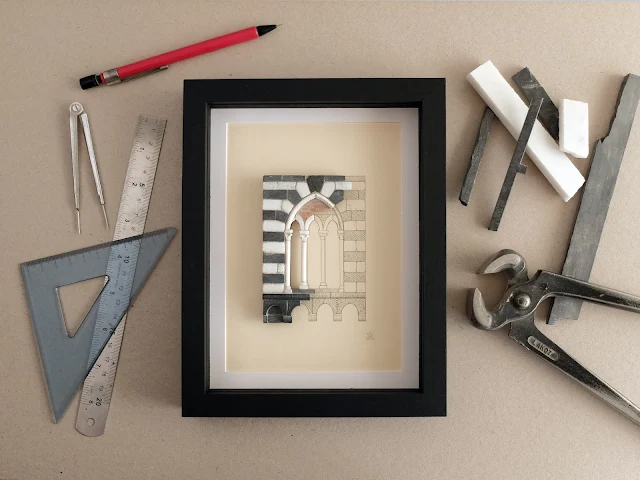

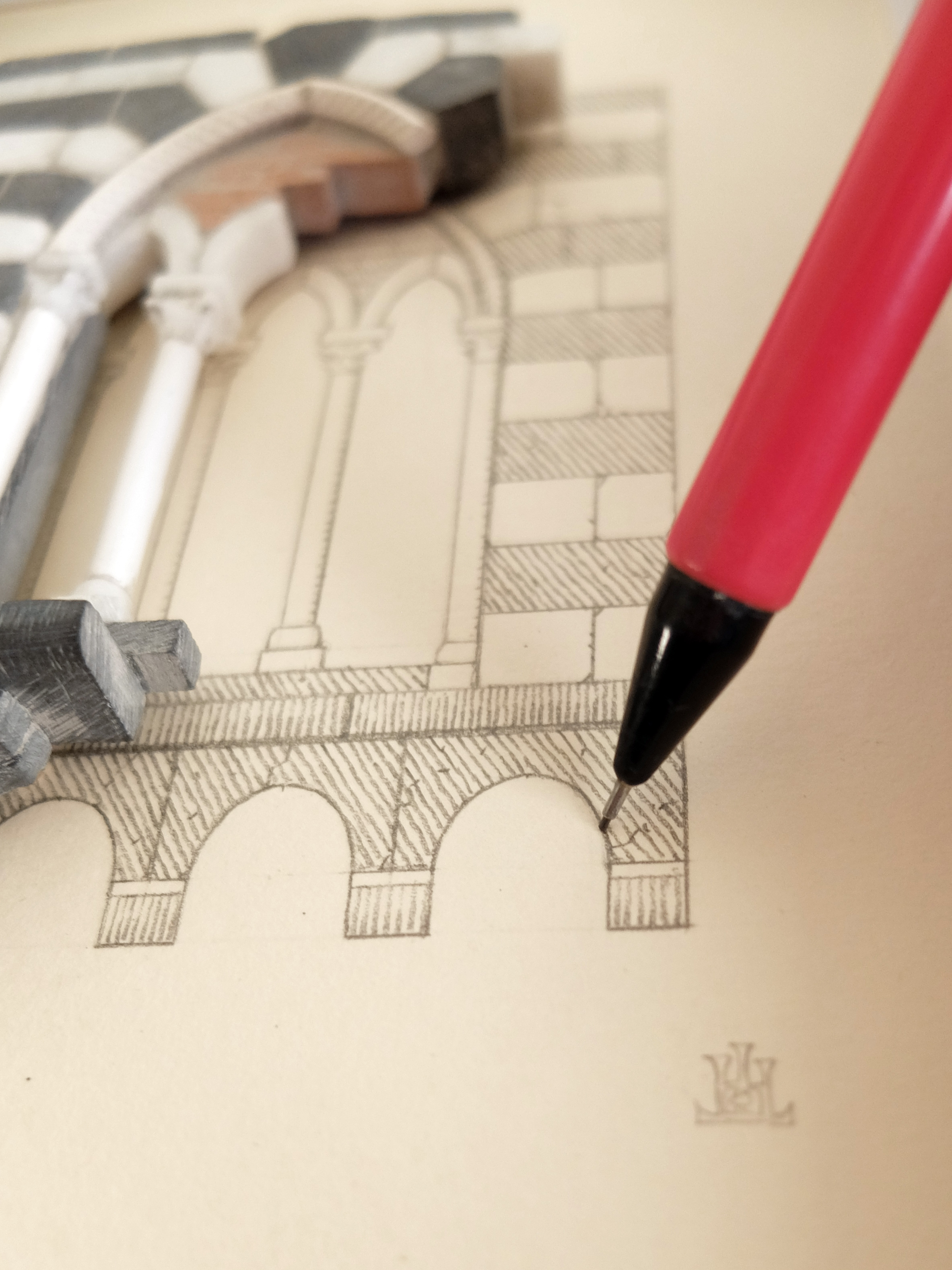

Scale reproduction of a medieval three mullioned window, pencil drawn on paper and partially build with natural stone and other materials.

THE PIECE IN DETAIL:

In the 14th century, the characteristic black and white bands on the facades were the prerogative of few rich families, whose sumptuous palaces can still be admired in the old part of the city. Over the course of time, subsequent interventions left their mark, altering in most cases the appearance of the original buildings. This model reconstructs a small three-part window (trifora) crowned by a pointed arch with polygonal voussoirs that connect with the two-color bands of the façade.


The materials used are: Carrara marble and Ligurian slate for the façade wall, Volterra alabaster for the capitals and internal arches, Sculpey polymer clay for the shaft of the columns, terracotta bricks for the tympanum, cement, vinyl glue. All the elements are worked with manual or mechanical tools without the use of molds, which makes it a unique piece that will hardly be replicated with identical characteristics.




The object is already framed and equipped with a bracket to hang it on the wall. It is particularly suitable for decorating a living room or a study / office.


Size: 6,8 x 9,8 x 1 cm (2,7 x 3,5 x 0,4 in)
Frame size: 17 x 22 x 3 cm (6,7 x 8,7 x 1,2 in)









Dp003 - series: Genova / model: Sant'Andrea

| ۩ | 0 comments

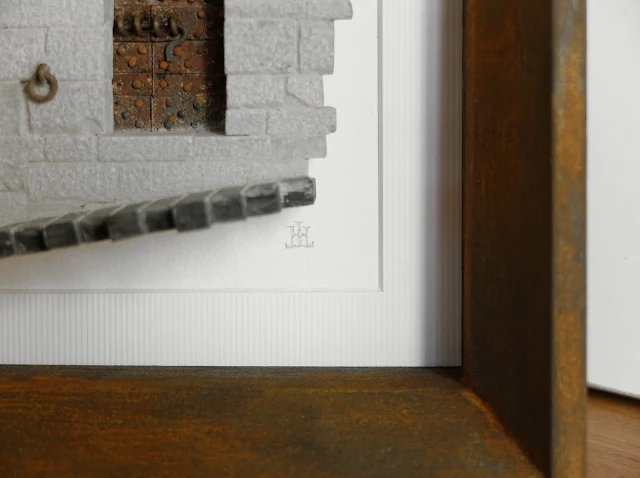

Scale model of a medieval door with a gothic tympanum and studded shutters, made with natural stone, iron and other materials.

THE PIECE IN DETAIL:

Construction inspired by one of the rear doorways of the so-called Porta Soprana of Genoa (or Porta di Sant'Andrea), built in the 12th century and restored between the late 19th and early 20th centuries. The gate is part of the city walls built by the Genoese to face a possible siege by Emperor Frederick Barbarossa, which finally didn't take place partly thanks to this great constructive effort, which lasted only a few years (months, according to some scholars).



It is said that, once their defensive function was lost, the towers were used as prisons, as well as the nearby convent, and in one of them the guillotine was placed during the French Revolution. So, not everyone who entered through that door came out on their own feet...



The materials used are: gray marble for the wall, Ligurian slate for the street paving, metal sheet, wire and pin heads for the door, cement, vinyl glue. All the elements that make up the piece are worked with manual or mechanical means without the use of molds, which makes it a unique work that will hardly be replicated with identical characteristics.



The iron-colored frame is equipped with a support to hang it on any wall indoors. It is particularly suitable for decorating a living room or a study / office.




Size: 7 x 11.5 x 3.5 cm  (2,7 x 4,5 x 1,4 in)
Frame size: 15.6 x 20.6 x 5 cm (6,1 x 7,9 x 2 in)

A set of photos taken during the construction process.






Dp001 - series: Genova / model: Doria [SOLD]

| ۩ | 0 comments



Here is the very first piece for sale on Etsy by the Domus project.

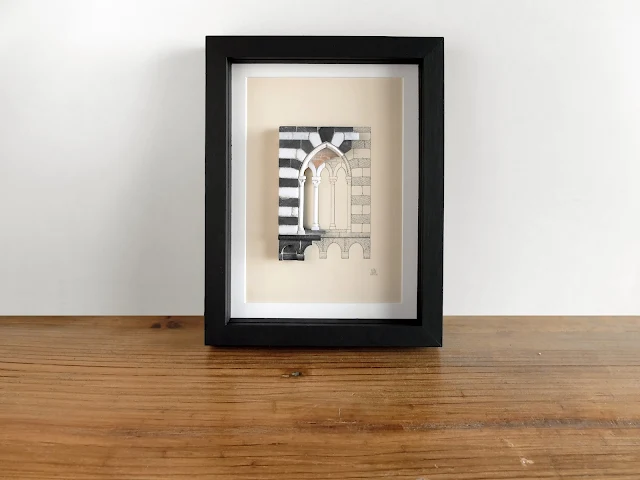

It's a scale reproduction of a three mullioned window, similar to the windows built for the corner room of the 1st floor (see here and here).

THE PIECE IN DETAIL:

In the 14th century, the characteristic black and white bands on the facades were the prerogative of few rich families, whose sumptuous palaces can still be admired in the old part of the city. Over the course of time, subsequent interventions left their mark, altering in most cases the appearance of the original buildings. This model reconstructs a small three-part window (trifora) crowned by a pointed arch with polygonal voussoirs that connect with the two-color bands of the façade.


The materials used are: Carrara marble and Ligurian slate for the façade wall, Volterra alabaster for the capitals and internal arches, Sculpey polymer clay for the shaft of the columns, terracotta bricks for the tympanum, cement, vinyl glue. All the elements are worked with manual or mechanical tools without the use of molds, which makes it a unique piece that will hardly be replicated with identical characteristics.



The object is already framed and equipped with a bracket to hang it on the wall. It is particularly suitable for decorating a living room or a study / office.


Size: 6,5 x 10 x 1 cm (2,5 x 3,9 x 0,4 in)
Frame size: 17,3 x 22,2 x 4 cm (6,8 x 8,7 x 1,6 in)

SEE IT ON ETSY






The DOMUS is on sale!

| ۩ | 0 comments


Ok, the title was just meant to get your attention. For those of you who don't know, the Domus project also has a shop on Etsy, where the first ebook of the "Master Builder's Secret Diary" is currently on sale in English and Italian versions. The second volume, that will deal with the construction of the ground floor, will finally be available shortly (by Christmas).

But that's not all. Soon, much more "physical" items will appear in the shop, and their availability will inevitably be very limited. I invite you right now to add the shop to your favorites and thus stay updated on future news. You can find it here:

See you soon!



Costruzione 265: Balconata del secondo piano (1) - travettatura e solaio

| ۩ | 0 comments

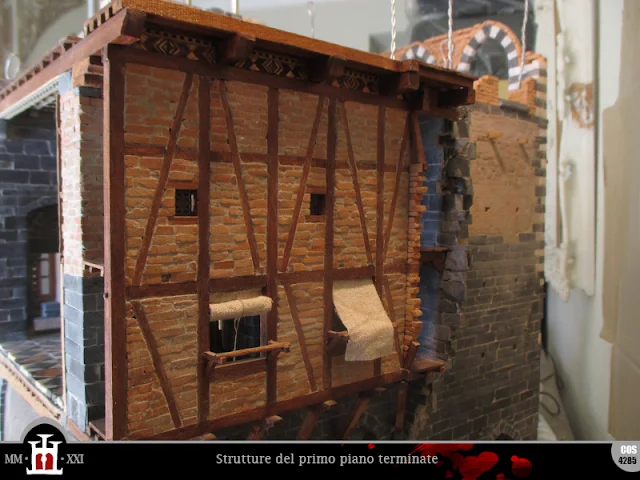

La struttura a graticcio costruita sulla facciata ovest della Domus prosegue al livello del secondo piano con una balconata coperta da una tettoia a spiovente. Approfittando del solido appoggio delle travi del solaio, il balcone aumenterà ancora il volume in aggetto dell'edificio, per poi ricongiungersi con la muratura in corrispondenza della cornice del terzo (ed ultimo) piano. Lo studio che ripropongo qui sotto, realizzato a partire da una foto, dovrebbe dare un'idea abbastanza fedele della struttura che mi accingo a costruire. Alcuni elementi non sono ancora definitivi e verranno rielaborati mano a mano che se ne presenterà la necessità, ma questo è stato il mio modo di procedere fin dall'inizio, per cui non rappresenta una novità.

Quello che invece è inedito è il fatto che finalmente il palazzo sarà dotato di uno spazio aperto che, almeno per una parte della giornata, riceverà la luce del sole. Anzi, se il palazzo adiacente lo permetterà, chissà che non si veda anche il tramonto! Il balcone comunque avrà una funzione estremamente pratica, perché da qui dovrebbe partire una scala esterna di legno che permetterà al personale di servizio di raggiungere il piano superiore (quello della servitù, appunto) senza disturbare i padroni. Sicurezza e tranquillità prima di tutto.

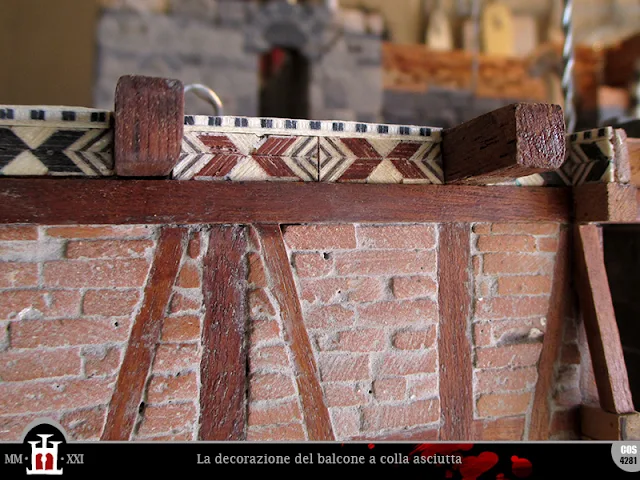

Ma vediamo come si compone la struttura del pavimento. I travetti, come già accennato, poggiano in parte sulle travi maestre del solaio interno, che vengono inframezzate da nuove travi più corte volte a sostenere i pali verticali della balconata. A questi si aggiunge il tavolato, che va a posizionarsi perpendicolarmente al muro incastrandosi sul lato esterno ad una trave di colmo leggermente più alta. Questa, a sua volta, farà da base ad una semplice balaustra i cui paletti non ho ancora deciso se saranno a sezione rotonda (magari stuzzicadenti) o quadrata (in questo caso, fiammiferi). Questo è appunto uno di quei dettagli che studierò in seguito. Un'aggiunta inizialmente non prevista è la decorazione esterna del solaio con frammenti di intarsio avanzati dal soffitto del piano nobile, definitivamente fissato poco prima di iniziare la costruzione della balconata. Riutillizzare gli scarti mi dà sempre una certa soddisfazione e mi rincuora che la mia proverbiale difficoltà a gettare via le cose possa rivelarsi (a volte) vantaggiosa.

Ecco, ora che il solaio è finito posso innalzare il perimetro murario al di sopra delle travi, prolungando la struttura metallica di sostegno e definendo le soglie della camera secondaria e del corridoio interno...




























MATERIALI:
legno, mattoni, ardesia, taracea (intarsio), cemento, filo metallico, smalto per legno, colla bianca, colla da contatto
STRUMENTI:
tenaglie, pinzette, carta abrasiva, seghetto, cutter, righello, paletta, morsetti, livella a bolla
MISURE (in mm):
sezione travi: 6 x 8
sezione travetti: 3 x 3
sezione assi: 5 x 1,5
sezione trave colmo: 5 x 5
spaziatura travi: 33
superficie calpestabile: 35 x 170
aggetto balcone: 11
